PVC-SWA-PVC

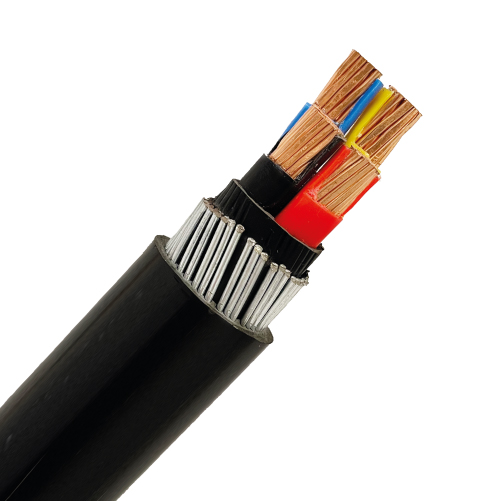

XLPE / SWA/ PVC

Category:
XLPE/SWA/PVC 2-CXLPE/SWA/PVC 3-CXLPE/SWA/PVC 4-C
Custom Sizes
Cross-sectional Area of Conductor
mm
Shape of Conductor
No./mm
Nominal Insulation Thickness
mm
Nominal diameter of steel wire
mm
Nominal Sheath Thickness
mm
Approx. Overall Diameter
mm
Approx. Cable weight
kg/km
1.5 CS 0.70 0.90 1.80 14.5 345
2.5 CS 0.70 0.90 1.80 15.5 390
4 CS 0.70 0.90 1.80 16.5 450
6 CC 0.70 0.90 1.80 18.0 530
10 CC 0.70 1.25 1.80 19.5 675
16 CC 0.70 1.25 1.80 21.5 800
25 SS 0.90 1.60 1.80 22.5 1230
35 SS 0.90 1.60 1.80 24 1480
50 SS 1.00 1.60 1.80 26.5 1840
70 SS 1.10 1.60 2.00 29.5 2450
95 SS 1.10 2.00 2.10 33.0 3210
120 SS 1.20 2.00 2.20 36.0 3850
150 SS 1.40 2.00 2.30 39.5 4650
185 SS 1.60 2.50 2.50 44.0 5880
240 SS 1.70 2.50 2.70 48.0 7260
300 SS 1.80 2.50 2.80 52.5 8740
400 SS 2.00 2.50 3.10 58.5 11405
Custom Sizes
Cross-sectional Area of Conductor
mm
Shape of Conductor
No./mm
Nominal Insulation Thickness
mm
Nominal diameter of steel wire
mm
Nominal Sheath Thickness
mm
Approx. Overall Diameter
mm
Approx. Cable weight
kg/km
1.5 CS 0.70 0.90 1.80 15.5 380
2.5 CS 0.70 0.90 1.80 16.0 430
4 CS 0.70 0.90 1.80 17.5 515
6 CC 0.70 0.90 1.80 18.5 610
10 CC 0.70 1.25 1.80 20.0 790
16 CC 0.70 1.25 1.80 22.0 1030
25 SS 0.90 1.60 1.80 26.0 1670
35 SS 0.90 1.60 1.80 26.5 1930
50 SS 0.9 1.60 1.80 29.5 2450
70 SS 1.10 2.00 2.00 34.0/td> 3440
95 SS 1.10 2.00 2.20 37.5 4380
120 SS 1.20 2.00 2.30 40.0 5450
150 SS 1.40 2.50 2.50 47.2 6680
185 SS 1.60 2.50 2.60 49.5 8050
240 SS 1.70 2.50 2.80 55.0 10180
300 SS 1.80 2.50 3.0 59.5 12150
400 SS 2.00 2.50 3.20 66.5 15540
Custom Sizes
Cross-sectional Area of Conductor
mm
Shape of Conductor
No./mm
Nominal Insulation Thickness
mm
Nominal diameter of steel wire
mm
Nominal Sheath Thickness
mm
Approx. Overall Diameter
mm
Approx. Cable weight
kg/km
1.5 CS 0.70 0.90 1.80 16.0 420
2.5 CS 0.70 0.90 1.80 17.0 485
4 CS 0.70 0.90 1.80 18.5 590
6 CC 0.70 1.25 1.80 19.5 715
10 CC 0.70 1.25 1.80 21.5 940
16 CC 0.70 1.60 1.80 24.5 1480
25 CC 0.90 1.60 1.80 28.0 1957
35 SS 0.90 1.60 1.90 29.5 2400
50 SS 1.00 1.60 2.00 32.5 3160
70 SS 1.10 2.00 2.20 38.0/td> 4320
95 SS 1.10 2.00 2.30 41.0 5500
120 SS 1.20 2.50 2.50 46.0 7120
150 SS 1.40 2.50 2.60 51.0 8550
185 SS 1.60 2.50 2.80 58.0 10400
240 SS 1.70 2.50 3.00 64.0 13100
300 SS 1.80 2.50 3.20 68.0 15800
400 SS 2.00 3.15 3.50 77.0 21120
